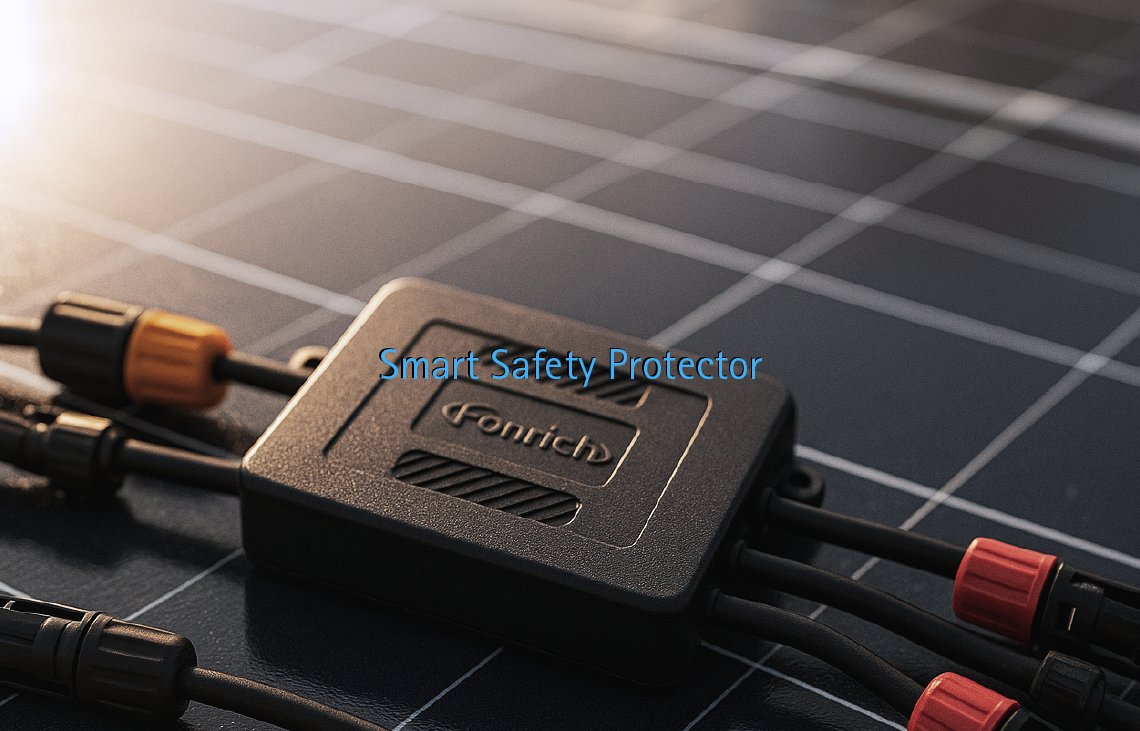

Smart Safety Protector
Smart Safety Protector acts as an intelligent guardian for your PV system. It not only detects and mitigates immediate safety threats like arc faults but also provides valuable data and control capabilities to ensure the long-term safe and efficient operation of solar installations.
Main Functionalities
- Module-level arc protection device.
- Rapid PV module shutdown.
- Data monitoring function.
- Precise arc fault location.
- Optimum parallel arc fault solution.
Advantages
Integrates advanced features such as module-level manual/automatic rapid shutdown, arc fault protection, data monitoring, and string break protection. Utilizes high-speed bidirectional PLC communication technology for enhanced performance. This all-in-one technology stack encompasses hardware, embedded software, power electronics, sophisticated algorithms, a web platform, and a mobile APP.
Active Safety
In any emergency, the inverter will be switched off instantly, or for any power outage, the rapid shutdown (RSD) of the module voltage will be activated to clear potential risks on a high-voltage rooftop.
Arc Fault Detection
Once a fault arc occurs, the Smart Safety Protector immediately issues an alarm alert and quickly extinguishes the module arc, ensuring the safe operation of the system.
Flexibility
The rapid shutdown system can be tailored to suit different scales and types of PV power generation systems.
Equipment Protection
The system safeguards PV components and inverters from damage during grid failures or voltage anomalies, preventing overvoltage or overcurrent issues.
Maintenance Cost Reduction
The system ensures PV modules are safe during maintenance, reducing the risk for technicians and potential costs from accidents.
Meets Regulatory Standards
Module level rapid shutdown and data monitoring enhance safety, optimize efficiency, and ensure compliance with NEC 2017, 2020, and 2023 standards for photovoltaic systems.
Smart Safety Protector, Performs Best Alongside
- Smart PV PLC Transceiver
Control of the safety protector module is achieved through PLC signals, and the information is transmitted to the monitor via RS485.
- PV module rapid shutdown meeting NEC 2017,2020 and 2023(690.12) requirements
- Bidirectional PLC communication with smart Pv safety protection device
- Modbus RS485 port to connect with monitor
- Non electrical contact with PV cable, safe and easy installation
- Max support 24 PV strings, and 624 PV modules
- Smart PV Monitor and Gateway
The Smart PV Monitor and Gateway connects to transceiver modules via RS485, provides real-time PV voltage data, and sends information to a cloud platform for remote monitoring via the Fonrich SafeSolar app or web interface. - RS485 connects up to 4 Smart PV PLC Transceivers
- Bluetooth BLE for local setting with mobile APP
- WIFl and RJ45 Ethernet for cloud connecting
- Local display max 2496 PV modules
- SafeSolar Cloud
The Fonrich SafeSolar Cloud Platform is an intelligent management system that, leveraging expertise in photovoltaic safety, offers a professional platform for PV industry participants. It ensures system safety by monitoring generation, power, voltage, temperature, and detecting arc faults.
Users can remotely manage PV modules via smartphone, tablet, or PC, accessing system generation data anytime, anywhere, and receive remote technical support to enhance photovoltaic safety.
